Operating Voltage

9 - 16v (12v nominal)

Current Consumption - No Alarm State

30mA (at 13.8V)

Current Consumption - Alarm State

28mA (at 13.8V)

Relay Output

60VDC, 50mA,
Protected 3.3 Ohm

Tamper Switch

12v max, 50mA max

RFI Immunity to Continuous Wave (CW) 10-1000MHz

75 v/m

RFI Immunity to Amplitude Modulation (AM) 10-1000MHz

30 v/m

RFI Immunity to Pulse Modulation (PM) 10-1000MHz

30 v/m

Alarm period of

2.5 seconds

Detection speed

0.3 – 3m/s

Operating Temperature

-10°C to +40°C

Storage Temperature

- 20°C to +60°C

Glass types

Float, plate, temperered, wired, laminated, leaded, double glazed

Glass thickness

2.4mm to 6.4mm

Glass size

0.3m x 0.3m to 3m x 3m

Optimum Coverage Height

8m

Minimum Pack

Warranty

Weight (Kg)

Manufactured

10

5

2.1000

UK

FEATURE

DESCRIPTION

BENEFITS

Installation test mode

By utilising this feature in conjunction with the Break Glass Tester the sensitivity settings

Ensures optimum performance

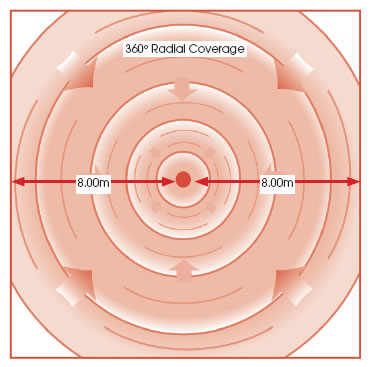

Omni-directional sensor

The BG16DF can be located in a convenient location, not necessarily positioned directly opposite the glass

Ensures installation in a convenient location

2 stage detection process

The detector first picks up the high frequency ‘shatter’ of the glass and then the initial low frequency ‘flex’ of the glass

Optimises stability in hostile areas

Triple LED Indication

The low frequency detection of the flex is indicated by a green LED, the high frequency shatter of the glass by orange and an alarm activation by a red LED

Maximises the ease of installation

Option for latch mode

Enables the detector which has triggered the alarm to be identified in the case where there is more than one detector connected to one zone

Easy identification of the activated detector

ABS Plastics

3mm polished finish, reduces electrostatic interference on the PIR sensor

Easy to clean, retains white finish

Security Grading

Environmental Class

ATS

2

2

N/A
