360° Interlocking Quad Element Digital Ceiling
Mount PIR Detector
Octopus Super
 Main Features
12m detection range (mounted at 3.4m high)
Intelligent noise reducing Independent Floating Thresholds technology
(IFT)
2 levels of digital sensitivity adjustment: Sequential Pattern Processing
(SPP)
Latch memory (C+)
Remote LED enable input (E-)
Twin LEDs to facilitate walk test
5 Year manufacturers warranty
ELECTRICAL SPECIFICATION
Electrical
|
Operating Voltage |
9 - 16VDC (12v nominal) |
|
Current Consumption - No Alarm State |
14mA (12V nominal) |
|
Current Consumption - Alarm State |
11mA (12V nominal) |
|
Relay |
Magnetically Shielded |
|
Relay Output |
60VDC, 50mA, Protected 3.3 Ohm |
|
RFI Immunity to Continuous Wave (CW) 80-2000MHz |
50V/m |
|
RFI Immunity to Amplitude Modulation (AM) 80-2000MHz |
20 V/m |
|
RFI Immunity to Pulse Modulation (PM) 80-2000MHz |
20 V/m |
Current Consumption
|
Tamper Switch |
12V max, 50mA max |
Operating Features
|
Alarm period of |
2.5 seconds |
|
Detection Speed |
0.3 - 3m/s |
|
Operating Temperature |
-30oC to +70oC |
Optical
|
Lens |
Fresnel array, ‘Grooves in’ infrared compensated |
|
Protection |
Ultraviolet Light Filter |
Mounting
|
Optimum Coverage Height |
1.8-4m |
DISTRIBUTOR PACKING INFORMATION
|
Minimum Pack |
Warranty |
Weight (Kg) |
Manufactured |
|
10 |
5 |
2.4000 |
UK |
PRODUCT FEATURES
|
FEATURE |
DESCRIPTION |
BENEFITS |
|
Automatic Temperature Compensation |
When the product is used in a hot environment this technology automatically adjusts the detectors sensitivity allowing it to retain its range even when the external temperature equals the external body temperature of
32oC. |
Guarantees optimum performance at all times |
|
Adjustable sensitivity settings |
High sensitivity setting for use in areas where fast detection is required. Adjustable sensitivity for installation in a more hostile environment. |
Ensures suitability for most environments |
|
Sealed Optics |
Protects from possible infestation from insects, shields air movement in front of the pyro-electric sensor and protects against adverse reflections from inside the detector housing. |
Enhances the focus of the pyro-electric sensor |
|
ABS Plastics |
3mm polished finish, reduces electrostatic interference on the PIR sensor. |
Easy to clean, retains white finish. |
EN50131
|
Security Grading |
Environmental Class |
ATS |
|
2 |
2 |
N/A |

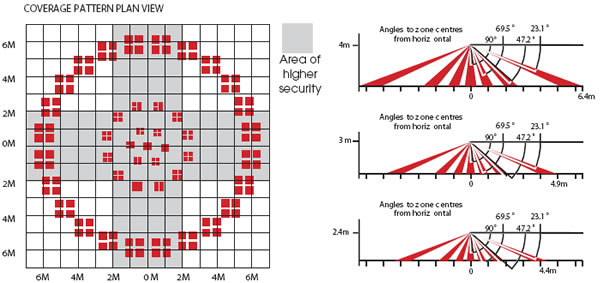

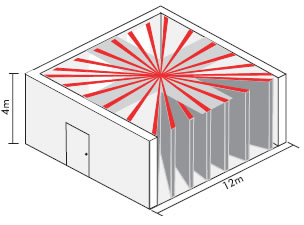

LENS COVERAGE
SUPPLIED
Ceiling 360 Deg Lens
APPLICATIONS
360 DEG LENS
COVERAGE
EFFECTIVE COVERAGE
|
