Dual Element PIR Detector
ME12
 Main Features
Adjustable detection range from 5 - 12m
Advanced Temperature Compensation (ATC)
Noise reducing Independent Floating Thresholds technology (IFT)
Adjustable sensitivity: Pulse count 1, 2 or 3
Complete with L1: 15m Volumetric, 90°, 34 zone edges, 3 planes
5 Year manufacturers warranty
ELECTRICAL SPECIFICATION
Electrical
|
Operating Voltage |
9 - 16VDC (12V nominal) |
|
Current Consumption - No Alarm State |
11mA (12V nominal) |
|
Current Consumption - Alarm State |
13mA (12V nominal) |
|
Relay |
Solid State |
|
Relay Output |
60VDC, 50mA, Protected |
|
Tamper Switch |
12V max, 50mA max |
|
RFI Immunity to Continuous Wave (CW) 10-1000MHz |
50V/m |
|
RFI Immunity to Amplitude Modulation (AM) 10-1000MHz |
20 V/m |
|
RFI Immunity to Pulse Modulation (PM) 10-1000MHz |
20 V/m |
Operating Features
|
Alarm period of |
2.5 seconds |
|
Operating Temperature |
-40oC to +80oC |
|
Detection Speed |
0.3 - 3m/s |
|
Storage Temperature |
-40oC to +80oC |
Optical
|
White Light Filter |
6500 Lux |
|
Optics |
Sealed |
|
Lens |
Fresnel array, ‘Grooves in’ infrared compensated |
|
Protection |
Ultraviolet Light Filter |
|
Tilt Adjustment |
0o – 12o |
Mounting
|
Optimum Coverage Height |
1.8-2.4m |
DISTRIBUTOR PACKING INFORMATION
|
Minimum Pack |
Warranty |
Weight (Kg) |
Manufactured |
|
50 |
5 |
6.2000 |
UK |
PRODUCT FEATURES
|
FEATURE |
DESCRIPTION |
BENEFITS |
|
Patented Independent Floating Thresholds (IFT) |
This technology patented by Pyronix allows the detector to respond to the environmental changes by automatically adjusting its levels of immunity to background disturbances. |
Greater stability, reduces risk of false alarm activation |
|
Adjustable sensitivity settings |
High sensitivity for use in areas where fast detection is required. Adjustable sensitivity settings for installations in a more hostile environment. |
Ensures suitability for most environments |
|
Automatic Temperature Compensation |
When the product is used in a hot environment this technology automatically adjusts the detectors sensitivity allowing it to retain its range even temperature equals the external body temperature of 32 DegC |
Guarantees optimum performance at all times |
|
Multi-Angular LED Indication |
A clear plastic pipe channels the light from the LED to the face of the detector making the LED indication highly visible from a multitude of angles. |
Enables walk testing to be undertaken with ease and accuracy ensuring the detector covers the desired area. |
|
Sealed Optics |
Protects from possible infestation from insects, shields air movement in front of the pyro-electric sensor and protects against adverse reflections from inside the detector housing. |
Enhances the focus of the pyro-electric sensor |
EN50131
|
Security Grading |
Environmental Class |
ATS |
|
2 |
2 |
N/A |
LENS COVERAGE
SUPPLIED

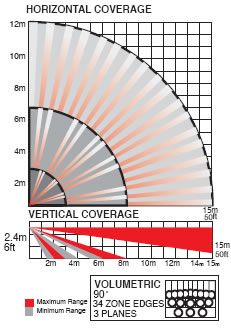

Lens 1 - Volumetric
OPTIONAL

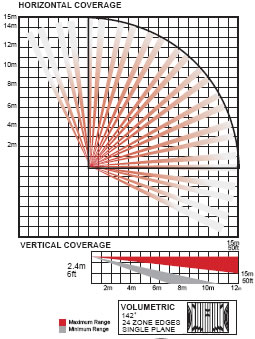

Lens 3 - Horizontal Curtain

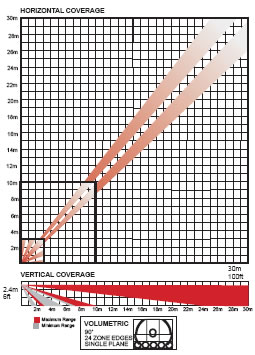

Lens 4 - Corridor (Long Range)
APPLICATIONS
VOLUMETRIC
HORIZONTAL CURTAIN
CORRIDOR LONG RANGE
|
