"CAB 15S"

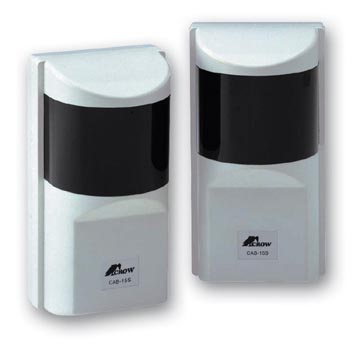

The CAB Series offer different sets consisting of separate transmitters and receivers with accurate performance and reliability. The transmitter emits infrared rays creating and ideal barrier that surrounds the area to be protected. The alarm is determined by the interruption of the invisible infrared beam.

A.G.C. (Automatic Gain Control) Circuit.
The A.G.C circuit continually monitors for gradual changes in the signal’s strength caused by changing weather conditions. It adjusts the sensitivity accordingly to maintain the proper signal level for the current envier mental conditions.

Rain, Dust & Insect protection
The rubber ring and rubber grommets could prevent rain, dust and tiny insects from adversely affecting performance.



Features

  • Detection range 60f (indoor)

  • CAB-15 series with 2 options: CAB-15S (Surface mount) & CAB-15F *Flush Mount)

  • Horizontal and Vertical Angle Alignment

  • 3 step LED indicator for fast and accurate and durable performance

  • circuit design with high surge resistance relay for stable operation

Detection Range

Outdoor 50 ft (15m); Indoor 100 ft (30m)
Max Arrival Distance: 500 ft (150m)

Current Consumption

Transmitter: 9 mA (13 mA MAX)
Receiver: 24 mA (26mA MAX)

Supply Voltage

10 V-28VDC (Non Polarity)

Detection System

Infrared Photoelectric

Infrared Beam

Pulsed Infrared, 1000 pps, 8800A

Response Time

60 msec (adjustable)

Alarm Output

Dry connect relay NC./NO. 0.3A/30 VDC
N.C opens when cover is removed

Tamper Switch Output

Dry connect relay NC./NO. 0.2A/30 VDC
(N.c. opens when cover is removed)

Alarm LED

Transmitter:
Led with Green ON; under transmitting
Receiver:
Led with RED ON; alarm abnormal
Led with YELLOW ON, very weak receiving signal
LED with RED and YELLOW OFF, normal condition

Functions

3-step LED indicator

Alignment angel

Horizontal +/-15; Vertical +/- 5

Over Voltage Protection

10/160us 150A, 10/1000us 75A (58V to 77VDC or more)

Operating Temp.

-13F to +131F (-25C to +55C)

Mounting position

Indoor/Flush/Wall/Switch box

Wiring

Terminals

Environment Humidity

95% (max)

Weight

5.9 oz (167 grams)

Dimensions (wXhXd)

2.67’x4.72’x1.77’ (70x120x45)

Cosmetics

PC (burglary color)

Standard Accessories

Screws (5/32’x1)x8
